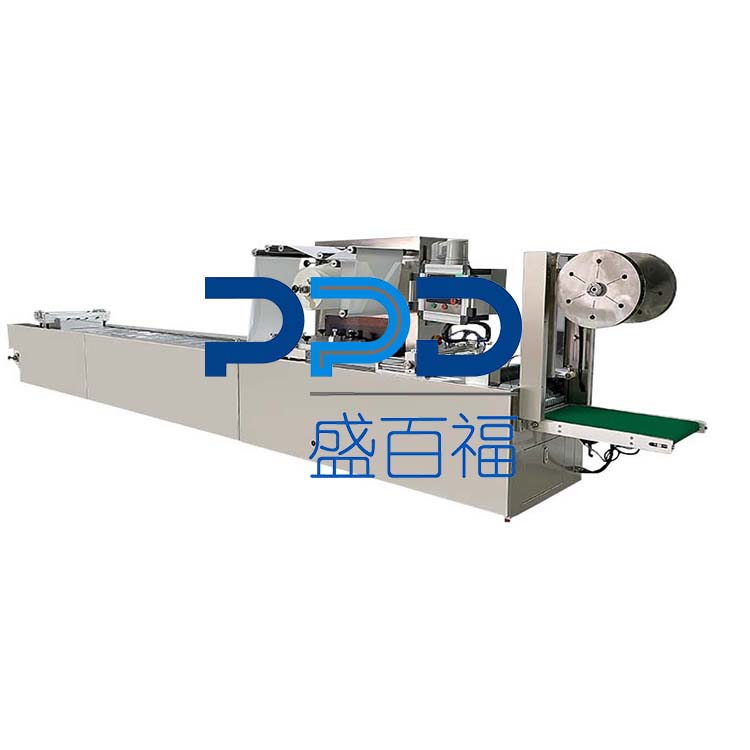

Gauze Roll Blister Packaging Machine

PPD-BPM420

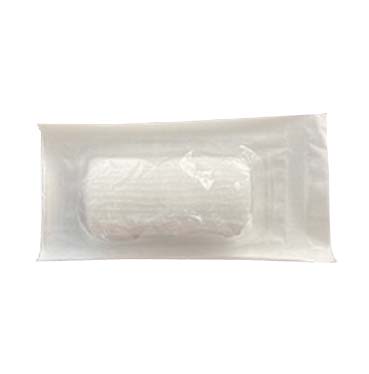

Gauze roll blister packaging machine is mainly used for four-side sealing packaging of gauze rolls, gauze pad,bandage roll,cotton roll,wound dressings etc.
The machine uses touch screen, PLC and servo motor to control the whole machine, which is easy to operate, stable and continuous.

Features:
1. Control display screen, customizable in multiple languages.
2. Electronic eye and label, automatic detection of missing logistics.
3. Four-side heat sealing mold, PID temperature control heating.
4. Longitudinal cutter, automatic longitudinal cutting.
5. Cutting horizontal mold, automatic horizontal cutting of materials.

Main Data:

Name: Gauze Roll Blister Packaging Machine

Model: PPD-BPM420

Bag packaging type: four-side sealing

Packaging film material: PE, PE composite PET

Packaging film width: max435mm

Packaging film outer diameter: max400mm

Packaging speed: 30-400pcs/min

Voltage: 380V, 50Hz

Power: 14.5kw
